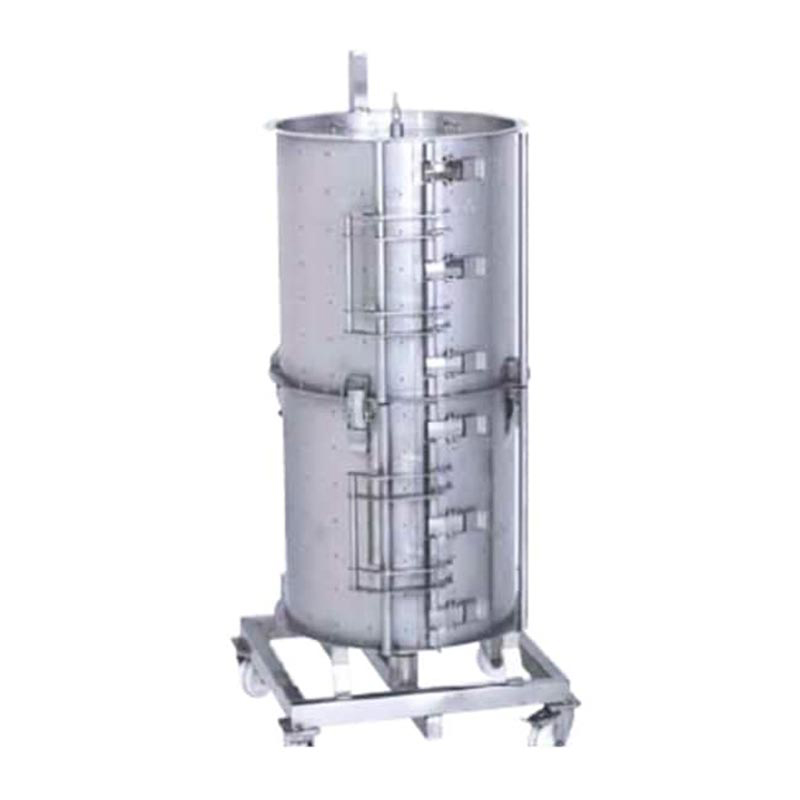

Atalay Döner Kalıbı, 67,5x64,5x111 Cm, ADK C5 2

Atalay Döner Kalıbı, 67,5x64,5x111 Cm, ADK C5 2

General Features

• Can be easily transported thanks to its wheels.
• Allows easy product filling with its segmented cylindrical blocks.
• Can be easily lifted with its rotating lift.
• Provides easy use with its hinged cylindrical blocks.
• It has a complete stainless steel body and stainless steel wheels.
• The mold has increased durability with a rigid locking system in lateral mold joining.
• Also, this locking system provides an extra advantage in mold disassembly.
• In vertical mold joining, quick connection and precise block alignment are provided by the pinned structure of the mold.
• The stability of the mold's geometric size tolerance has been increased.
• The mold diameter is 620 mm. The mold consists of 3 blocks.
• The wheels open and close with the mold's semicircles, providing ease of movement.
• The geometric size stability of the mold is increased with the centering plate at the top.

Technical Specifications

• Cover Count: 2x h;400 mm
• Mirrors: 440/320/200 mm
• Inner Height: 800 mm
• Inner Diameter: 450 mm
• Dimensions: 675x645x1110 mm
• Weight: 73 Kg
