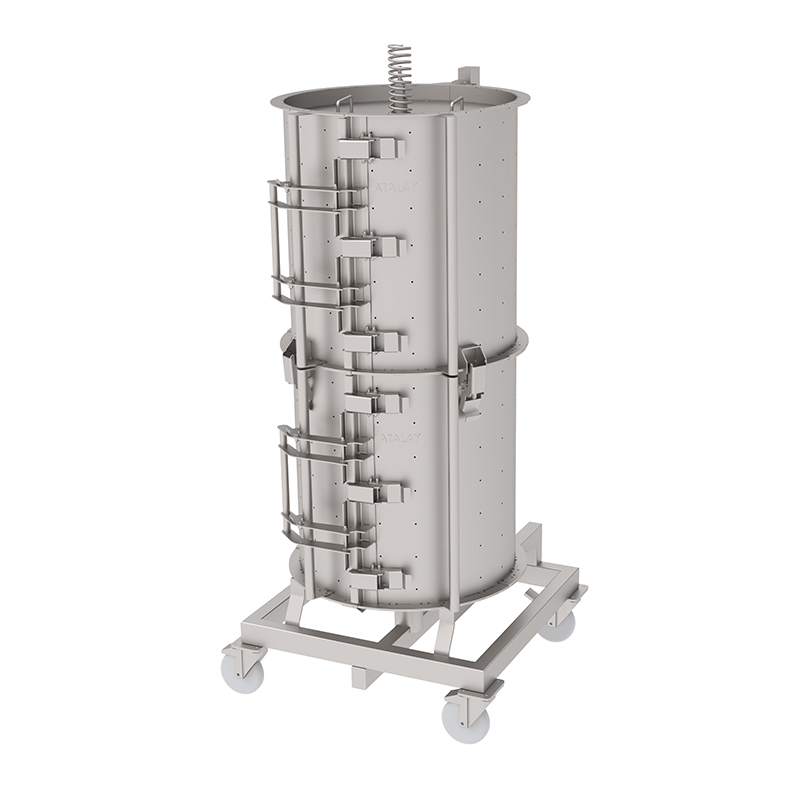

Atalay Döner Mold, 81x76,4x157 Cm, ADK 14 2

Atalay Döner Mold, 81x76,4x157 Cm, ADK 14 2

General Features

• Easily portable with its wheels.
• Allows easy product filling with its modular cylindrical blocks.
• Can be easily lifted with the rotating lift.
• Provides easy use with hinged cylindrical blocks.
• It has a complete stainless steel body and stainless steel wheels.
• The mold has increased rigidity with a rigid locking system in lateral mold joining.
• Also, this locking system provides an extra advantage in mold disassembly.
• Quick connection and precise block alignment are provided in vertical mold joining thanks to the pinned structure.
• The geometric measurement tolerance of the mold has been increased.
• The mold diameter is 620 mm. The mold consists of 3 blocks.
• The wheels open and close with the mold's semi-circles, providing ease of movement.
• The geometric measurement stability of the heat is increased with the centering plate at the top.

Technical Specifications

• Number of Covers: 2x h;600 mm
• Mirrors: 440/320/200 mm
• Internal Height: 1200 mm
• Internal Diameter: 560 mm
• Measurements: 810x764x1570 mm
• Weight: 140 Kg
