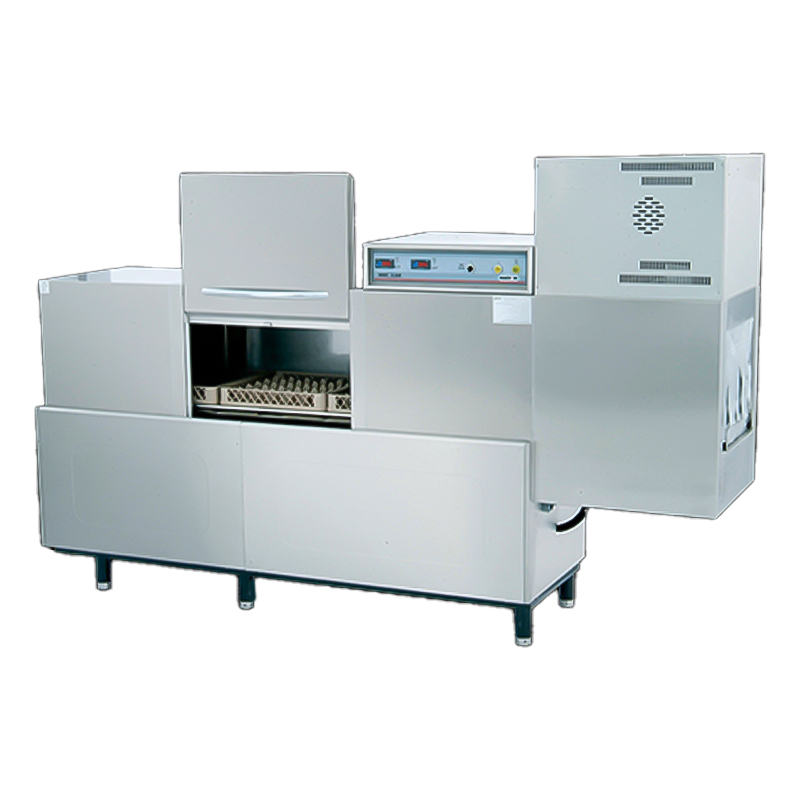

İnoksan BKE2000R Conveyor Dishwasher

İnoksan BKE2000R Conveyor Dishwasher

• Electromechanical control,
• Easy-to-remove and install washing and rinsing arms and filters for cleaning,

• Capable of washing kitchen utensils up to a maximum height of 360mm,
• Safety system that stops operation when the cover is opened,

• Basket dimensions are 50x50 cm.

• Safety thermostats for the boiler,

• AISI 304 Cr-Ni stainless steel in contact with water

• 1 plate cassette

• 1 fork cassette

• 1 cup cassette

• Rinse pump, detergent pump, and rinse aid pump are optional.

• Water level in the tank is automatically controlled by a pressure switch,

• Conveyor dishwasher push system driven by articulated arms

• Digital thermometers showing water temperatures

• Drying unit

• Suitable height and depth distances for the installation of entry and exit counters.

Technical Specifications

• Water inlet: 3/4 inch

• Water pressure: 2-4 bar

• Electric input: 380-50 V-Hz.

• Washing Motor Power: 1.5 kW

• Pre-wash motor power: 0.6 kW

• Max. Electric Power: 31 kW

• Frequency: 50-60 Hz

• Water consumption: 4.8 Lt/cyc

• Tank Power: 6 kW

• Boiler Power: 16 kW

• Reducer motor power: 0.25 kW

• Drying temperature: 6 kW

• Drying motor power: 0.55 kW

• Washing Temperature: 55 degrees

• Rinse Temperature: 85 degrees

• Water Inlet Temperature: 45-50 degrees

• Boiler Volume: 30 lt

• Main wash tank Water Volume: 110 lt

• Pre-wash tank water volume: 80 lt

• Plate Capacity: 2000 pcs/h

• Cassette Capacity: 125 pcs/h

• Cup Capacity: 3125 pcs/h

• Tray Capacity: 1000 pcs/h

• Plate Diameter Max: 35 cm

• Plate Height: 35 cm

• Cable section: 4x16

• Rinse Motor Power: 0.33 kW

• Weight: 108 kg
• Dimensions: 298x80.5x185 cm
