Make sure the power cord is not plugged in when attaching or detaching the motor to the machine.
Do not unplug the cord from the outlet when your hands are wet or damp.
Do not leave your machine, especially when it is plugged in.
Do not use your machine in areas where it may come into contact with heat sources (e.g. stove) or wet areas (e.g. sink).
Use the device continuously for a maximum of 15 minutes as described in this guide.
Use only the cable provided with the product and extensions that comply with the values specified on the motor label.
Avoid wearing ties, scarves, or long accessories when operating the machine with the motor attached; also, make sure to secure your hair with a clip to prevent it from falling forward.
Repairs related to the electrical installation should be carried out by authorized personnel. Unauthorized persons should not access the internal parts of the motor.
The amount of material used (solid and liquids) should not exceed the indicator inside the bowl.
After using all three functions of the machine (kneading-rolling-cutting), the machine should be turned off and left to rest with the lid open for 10 minutes.
ATTENTION!;
This product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, as well as inexperienced and uninformed persons. These individuals can only use the tool under close supervision. Be careful if the child is going to use the tool himself or use it nearby. Make sure the child is not playing while using the tool. This tool is not intended for use by children. Store the tool and its cable in a place inaccessible to children.
IMPORTANT SAFETY WARNINGS;
When using electrical appliances, always follow the basic safety rules below:
Read all instructions
To avoid the risk of electric shock, do not place the machine or motor in water or any liquid.
Be careful if the child is going to use the tool himself or use it nearby.
Before attaching or detaching parts and cleaning, turn off the machine first and then unplug it. To unplug, grasp the plug and pull it towards yourself. Never try to pull out the cable by pulling it.
Avoid contact with moving parts.
Do not feed the food product into the machine by hand. Use an attachment instead.
Do not operate tools that have damaged cables or plugs, have fallen or been damaged in any way. Take the tool to the nearest authorized service for inspection, repair, or electrical/mechanical adjustments.
Do not use accessories not recommended or sold by the manufacturer due to the risk of fire, electric shock, or injury.
Do not use outdoors.
Do not allow the cable to hang over the edge of the counter or table.
CONTROL PANEL;
On/Off button.
Red LED light (left) (blade compartment): If the light is on, the cover is not fully closed.
Blue LED light: If the light is on, the machine is ready for use.
Red LED light (right) (cover): If the light is on, the cover is not fully closed.
Control button: Press this button to move the blade.
PREPARING THE MACHINE FOR USE;
Wipe the entire machine with a damp cloth before first use.
Pass a small piece of dough that you will discard through the rollers to clean them.
Attention! Check the voltage. Make sure the voltage of the electricity you use matches the values on the machine's value table.
FRESH PASTA RECIPE;
500 g soft-wheat dough
4 whole eggs
A small amount of water
To get better pasta, mix 250 g of soft-wheat flour with 250 g of durum wheat flour (semolina/durum wheat semolina).
The total of eggs and water should not exceed 250 ml.
PREPARING THE DOUGH;
Adjust your ingredients according to your recipe
Open the lid of the machine and pour your ingredients into the mixing compartment. Make sure the blade compartment is closed and the red LED light is not on.
Close the lid and start the machine by pressing the On/Off button.
TIP: Do not use eggs immediately after removing them from the refrigerator.
CAUTION: Always make sure the machine's lid is closed to keep the flour inside the machine.
MAKING PASTA SHEETS;
Divide your dough into 4-5 pieces.
Attach the flat roller to the machine. Turn the adjustment to position 0 by pulling it towards yourself and turning it to get the rollers completely open.
Pass one of the dough pieces through the rollers.
Repeat this process 5-6 times, folding the sheet each time and adding a little more flour if necessary).
MACHINE SETTING SHEET THICKNESS
#0 ~4.8 mm
#1 ~3.8 mm
#2 ~3.3 mm
#3 ~2.5 mm
#4 ~1.9 mm
#5 ~1.5 mm
#6 ~1.2 mm
#7 ~1.0 mm
#8 ~0.8 mm
#9 ~0.6 mm
Lay your pasta on a damp cloth and cook immediately. If you want to store your pasta (up to 1 month), you can dry your pasta using the Marcato Tacapasta product.
Your pasta will dry in approximately 5-6 hours, depending on temperature and humidity. You can store it in suitable kitchen containers.
MAINTENANCE AND CLEANING;
Removing and replacing the blade
Open the blade compartment
Push the blade towards the access hole
Pull the blade upwards
To replace the blade, repeat the same steps in reverse order.
Recommendation: The recommended thickness setting for fettuccine is 5. Use setting 7 for tagliolini. For the thinnest form possible, pass the pasta sheet through the rollers at setting 9 twice.
Removing and replacing the cover;
Turn the cover completely (90 degrees) and pull the cover until it is free from the pins
To replace the cover, perform the same operation in reverse order.

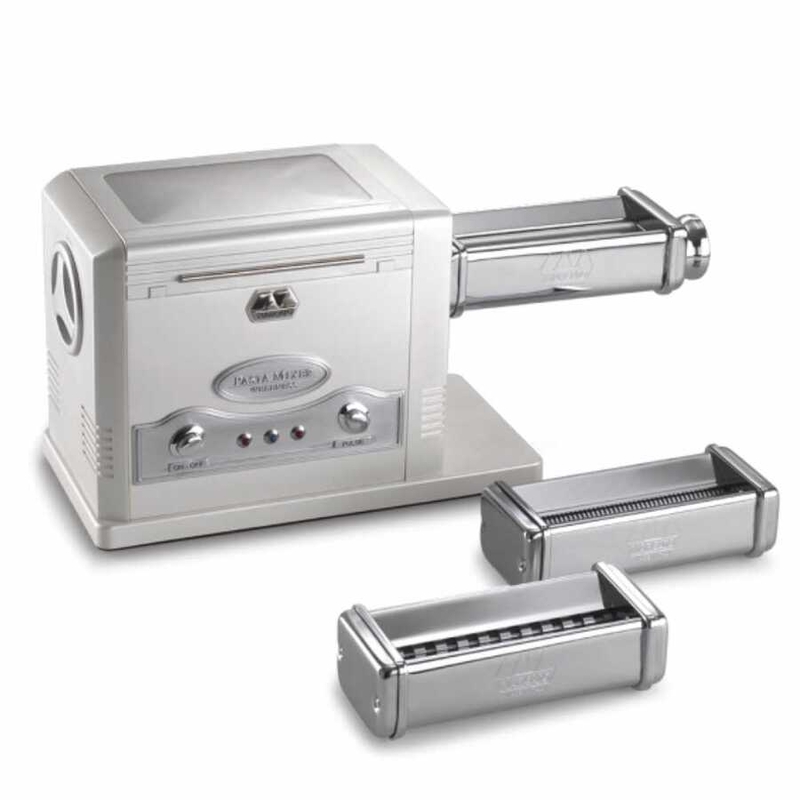

Attaching and detaching accessories;
Place the accessory in the hexagonal socket next to the machine.
Turn the accessory 30 degrees until it fits snugly into the socket.
Cleaning;
Unplug the power cord from the outlet before cleaning and maintenance of the machine.
Do not wash the machine and accessories in the dishwasher.
Use a brush and wooden stick to clean the machine.
All types of repairs must be performed by authorized service personnel.
Do not attempt to access the internal parts: contact Eyüboğlu for assistance.
It is recommended to store the machine and accessories in their original packaging.
