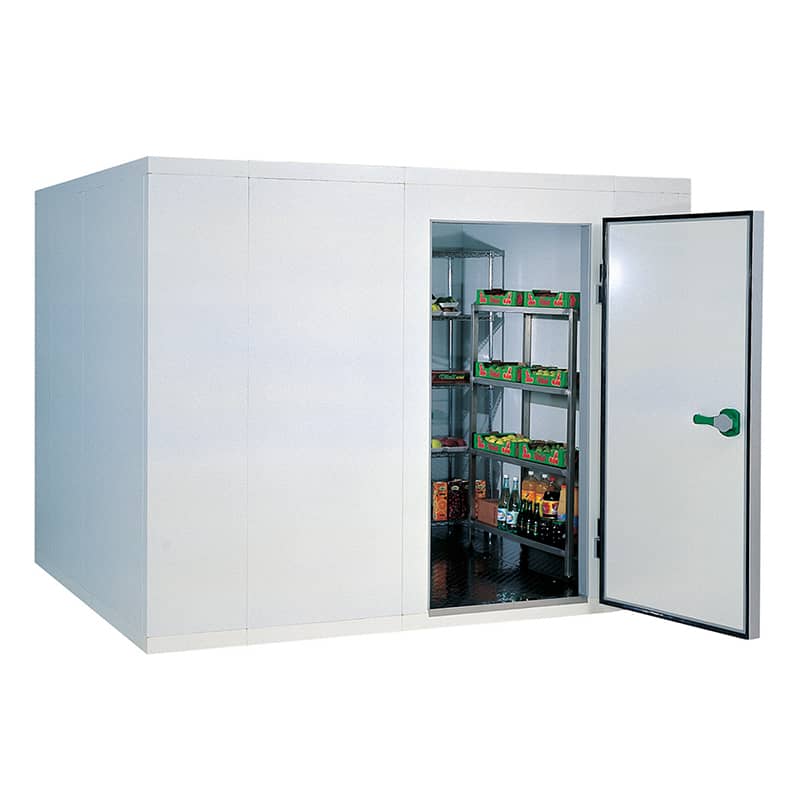

Panel Type Cold Room
PRODUCT CODE 7919.CR3515.00
DESCRIPTION
* Standard and custom design cold and frozen storage rooms are produced as panel type cold rooms.
* Cold rooms are produced with 1 kW-10 kW cooling capacity ranges as standard with hermetic compressor and air-cooled condenser.
* CE and ISO certified world brands are preferred for all cold room equipment and components.
* Solutions can be offered for special requests.
* Condensers are designed with R404a gas for +38/ +43°C ambient temperature in standard versions, but special design manufacturing can be done with R134a gas suitable for +50/ +55°C ambient temperature as needed.
* Energy saving can be achieved by adding optional fan speed control.
* All condensers are manufactured with copper tube and aluminum fin.
* Cold room doors are produced with 40/42 kg/m3 density polyurethane filled in 80/100/120/150 mm thickness as needed.
* Door resistance is used in negative rooms.
* Doors allow opening from the inside even when locked. Observation glass can be installed upon request and stainless steel, PVC coated doors can be manufactured.
TYPE Electric
WIDTH (mm) 3500
LENGTH (mm) 1500
HEIGHT (mm) 2400
NET WEIGHT (Kg) 500
VOLUME (m3) 10.2
ELECTRIC POWER 1.2
VOLTAGE 220-240 V
FREQUENCY 50
MAXIMUM NOISE 60
PROTECTION CLASS IPX5
