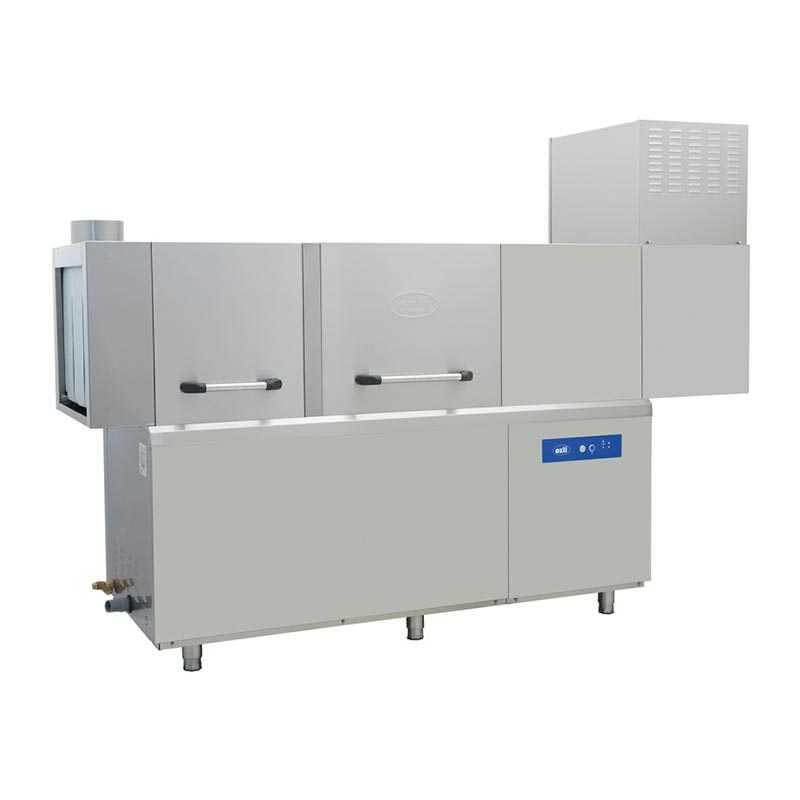

Öztiryakiler Conveyor Dishwasher, Left Entry, with Dryer, Obk 3000

Öztiryakiler Conveyor Dishwasher, Left Entry, with Dryer, Obk 3000

• Stainless steel body, boiler, and washing tank

• One-piece and rounded corners hygienic washing tank

• Automatic and user-friendly control panel

• Washing arms made of stainless steel and reinforced polypropylene(PP)

• Height optimization with adjustable feet

• Electrical components and wiring systems comply with international standards and safety

• All body is insulated and IPX5 protection standard against water

• Thermostat controlled rinsing and washing temperatures for effective washing

• Valve system preventing the return of water in the machine to the plumbing

• Washing water temperature 55-60 degrees (with a minimum of 2 bar and 50 degrees feed water temperature)

• Rinsing water temperature 80-85 degrees (with a minimum of 2 bar and 50 degrees feed water temperature)

• Washing capacity of 100 baskets/hour (Basket dimensions 50cmx50cm)

• 3 liters of water consumption for each washing cycle

• Effective drying thanks to high-power fan

• Easy connection; one-touch water filling and heating for boilers and washing tanks

• Right Entry Counter

• Internal Rinsing Pump

• Dimensions: 80x305x188

• Net Weight (Kg): 385 (+-5)

• Gross Weight (Kg): 420 (+-5)

• Capacity: 300 Plates/Hour

• Power (kW): 59.1

• Volt (single phase/three phase): 400V / 3 NPE

• Frequency: 50 Hz

• Hot Water Pressure (bar):2 - 4 bar

• Hot Water Hardness:0-10 French water hardness

• Cold Water Inlet Diameter (inch):3/4''

• Cold Water Pressure (bar):2 - 4 bar

• Cold Water Hardness :0-10 French water hardness

• Drain Inlet Diameter (inch):1 1/4''

• Tank Volume (Lt.): 90

• Boiler Volume (Lt.): 18

• Washing Pump Flow Rate (Lt/min): 440/659

• Rinsing Pump Flow Rate (Lt/min): 18

• Boiler Heating Power (kw): 27

• Tank Heating Power (kw): 13.5

• Washing Pump Power (kw): 1.5

• Rinsing Pump Power (kW): 0.37

• Washing Water Temperature (ºC): 55-60

• Rinsing Water Temperature (ºC): 80-85

• Drying Fan Power (kW): 0.45

• Max. Noise Level (dBA): 85

• Protection Class : IPX5
