" Conveyor Type Dishwashing Machine (With Dryer) "

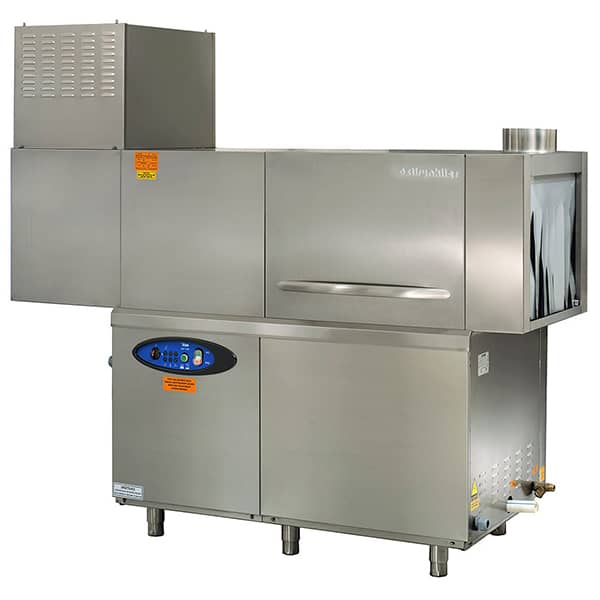

Öztiryakiler OBK 1500 with dryer conveyor dishwashing machine model offers a washing capacity of 100 baskets per hour, equivalent to 1650 plates, with washing and rinsing tanks having capacities of 90 / 18 liters, and provides a water consumption of 3 liters per washing cycle. The conveyor dishwashing machine ensures effective drying with its high-powered fan, so now dishes can be dried with the Öztiryakiler OBK 1500 model in the time it would take for drying. Classified under the hotel-type dishwashing machine category, the OBK 1500 simplifies the washing process with its user-friendly digital panel. It allows easy water filling and heating for the boiler and washing tanks with a single touch. Designed for professional dishwashing, the machine provides effective washing with the control of washing and rinsing temperatures through its dedicated thermostat.
| PRODUCT CODE | 076R.0010K.BD |
| DESCRIPTION | *Stainless steel body, boiler, and washing tank *Seamless, hygienic, and rounded corner washing tank *100 baskets per hour washing capacity (basket size 50cmx50cm) *Effective drying thanks to the high-powered fan *3 liters of water consumption per washing cycle *Automatic and user-friendly control panel *Continuous drying with conveyor system *Energy, detergent, and water savings *Washing arms made of stainless steel *Height optimization with adjustable legs *Easy start with one-touch water filling and heating for boiler and washing tanks *Electrical components and wiring systems conform to international standards and safety *All body parts are insulated and meet IPX5 water protection standard *Thermostat-controlled washing and rinsing temperatures for effective washing *Valve system preventing backflow of water to the system *Washing water temperature 55-60°C (with supply water at least 2 bar and 50°C) *Rinsing water temperature 80-85°C (with supply water at least 2 bar and 50°C) *Right side entry |
| TYPE | Electric |
| WIDTH (mm) | 2050 |
| LENGTH (mm) | 850 |
| HEIGHT (mm) | 1880 |
| NET WEIGHT (Kg) | 250 |
| GROSS WEIGHT (Kg) | 270 |
| VOLUME (m3) | 3.08 |
| CAPACITY | 1650 Plates/Hour |
| ELECTRICAL POWER | 47 |
| VOLTAGE | 400V - 3 NPE |
| FREQUENCY | 50 |
| HOT WATER PRESSURE | 2-4 bar |
| HOT WATER HARDNESS | 0-10 French Hardness |
| COLD WATER INLET DIAMETER | 3/4'' |
| COLD WATER PRESSURE | 2-4 bar |
| COLD WATER HARDNESS | 0-10 French Hardness |
| DRAIN INLET DIAMETER | Ø 50 |
| TANK VOLUME | 90 |
| BOILER VOLUME | 18 |
| WASHING PUMP FLOW RATE | 659 |
| RINSING PUMP FLOW RATE | 18 |
| BOILER HEATER POWER | 27 |
| TANK HEATER POWER | 9 |
| WASHING PUMP POWER | 1.5 |
| RINSING PUMP POWER | 0.37 |
| WASHING WATER TEMPERATURE | 55 - 60 |
| RINSING WATER TEMPERATURE | 80 - 85 |
| DRYING FAN POWER | 0.45 |
| MAXIMUM NOISE | 80 |
| PROTECTION CLASS | IPX5 |
| PRODUCT ORIGIN | Turkey |
| BRAND | Öztiryakiler |
