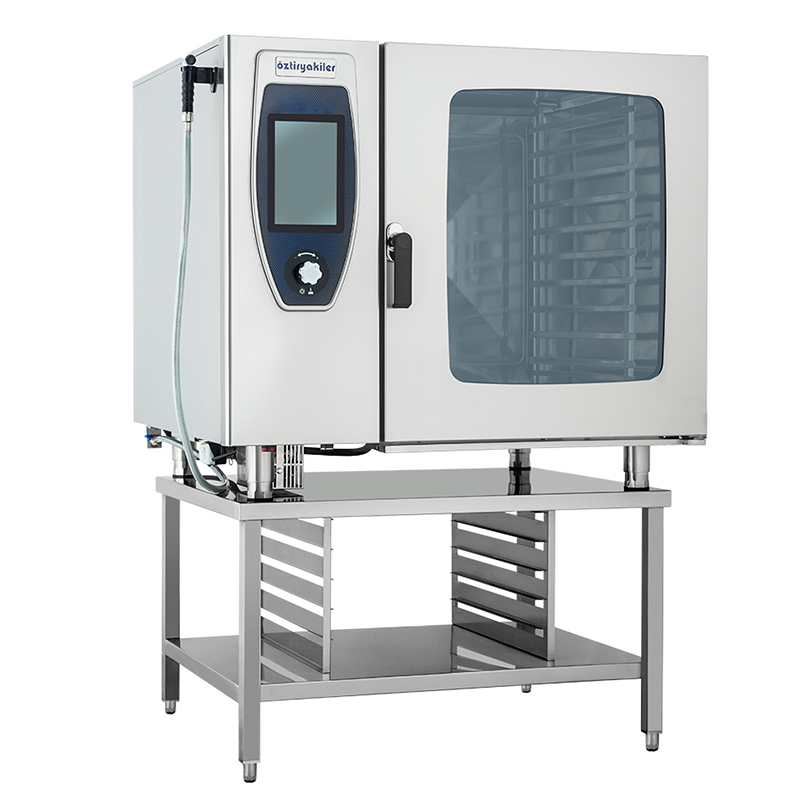

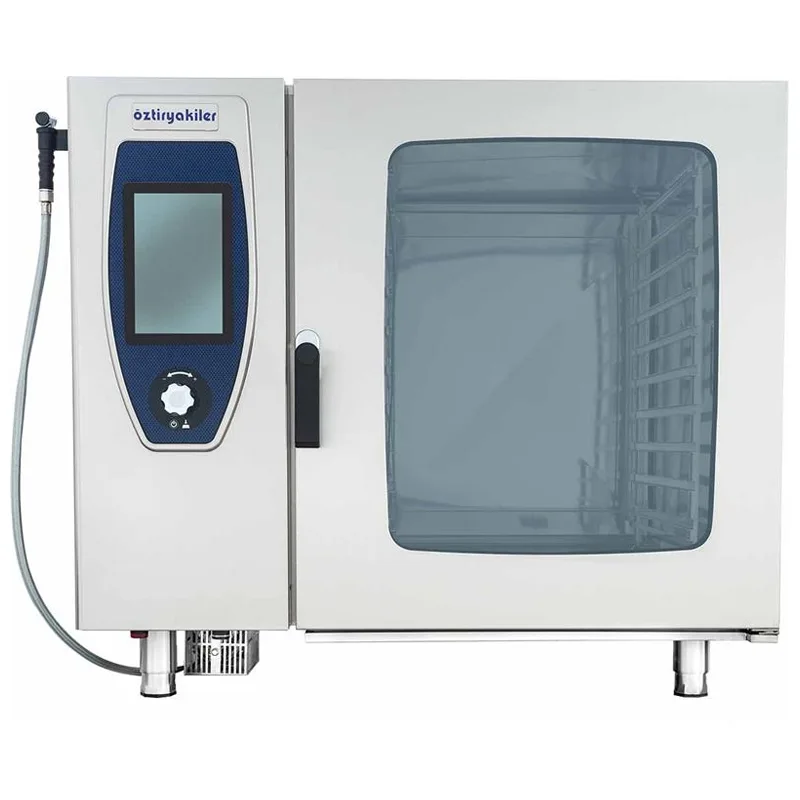

Öztiryakiler Gas Combi Oven, 20 x GN 1/1

Product Code : 1M.7890.C1.10G21.03
Free Shipping
Discounted Product
%23
536,235 TL
413,667 TL
344,723 TL + VAT

Out Of Stock

Notify me when its in stock
View the Product Brochure
ProductFeatures
Number of Tray
20 GN 1/1, 10 GN 2/1
Height (cm)
84.3
Depth(cm)
112
Width (cm)
86
Control Panel
Digital
Input Voltage
Single-Phase
Working Type
Gas
Weight
180

Öztiryakiler Gas Combi Oven, 20 x GN 1/1

PRODUCT CODE 7890.C1.10G21.03
DESCRIPTION
  • Easy operation with a 10-inch touch control panel, even for inexperienced staff
  • Cooking and boiler are made of AISI 304 Cr-Ni stainless steel and the outer cover is made of AISI 430 stainless steel sheet
  • Three different cooking modes
  • Combi Mode (25-280°C), humidity level adjustable
  • Dry Heat Mode (25-280°C)
  • Steam Mode (25-130°C)
  • Banquet Heating Mode
  • Manual humidification feature (adjustable humidity dose)
  • One-button control (with confirmation function)
  • Smart tray feature allows different cooking times for each rack at the same time, with a warning system when time is up
  • 7-program automatic cleaning mode (steam generator (boiler) cleaning, T9, intermediate, tablet-free, fast, medium, intensive)
  • Precise fermentation without the need for a fermentation device
  • Rail system that allows the oven trolley to easily fit into the oven
  • Door seal prevents steam loss and is easy to install
  • Double glass to prevent heat loss
  • High-temperature and steam-resistant halogen light inside the cabin
  • Central temperature (meat) probe for cooking fish, whole chicken, and meat (25-99°C)
  • Delta T cooking option for slow cooking over a long period
  • Free cooking feature allows cooking for up to 24 hours and observing the actual cooking time
  • Construction and air channels that ensure homogeneous distribution of hot cooking air
  • Adjustable rapid cooling system to reach the desired temperature
  • Adjustable pre-heating feature for reaching the desired temperature
  • 5 different fan speeds
  • Manual cabin cleaning spray
  • Manual steam spraying system
  • Steam condensation system
  • Temperature and time indicator panels on the touch screen
  • 50 preset recipes stored (more than 1000 recipes can be saved)
  • Customizable recipe saving (more than 1000 recipes can be saved)
  • USB port for recipe copying and software installation
  • Real-time date and time display on the touch screen
  • Multi-language capability
  • Ability to create an 8-step cooking program
  • Safe, double-stage door lock system
  • Specially designed oven cavity with rounded inner corners for full hygiene and homogeneous cooking
  • Faster cooking time compared to standard convection ovens
  • Safety feature with quick-stop fan system when the door is opened
  • Automatic opening and closing drainage system
  • Easy-to-clean cabin interior
  • In service mode, all functions can be monitored and controlled from the screen
  • The ability to detect the amount of scale in the steam generator and provide cleaning warnings based on the scale level
  • Fault warning system (e.g., low water level)
  • Limit thermostats for the steam generator and inner cabin
  • Automatic refill system and powerful steam generator
  • Can operate with LPG or natural gas and can be converted without any modification
  • Gas valve with electronic ignition system and automatic gas cut-off safety system in case of flame extinguishing
  • Long-lasting and high-performance heat exchange tubes
  • Low-emission and high-efficiency combustion system (premix system) with silent high-performance burners
  • Rack spacing: at least 63mm
  • Useful internal volume: at least 0.44 m³
  • Can cook 20 pieces at the same time on a GN 1/1 tray
  • Electrical power value: 1 kW (dry heat power: 42 kW, steam (boiler) power: 35 kW)
  • Motor power: 2 x 850 W
  • Water inlet: 3/4", water pressure: 1.5 - 4 bar
TYPE

Carbonated

WIDTH (mm) 1230
LENGTH (mm) 1096
HEIGHT (mm) 1089
CAPACITY 20 GN 1/1
ELECTRIC POWER 1
VOLTAGE 230V / NPE
FREQUENCY 50/60 Hz
LPG TYPE LPG
LPG POWER 35 / 42 kW
LPG INLET DIAMETER 3/4"
LPG NOMINAL PRESSURE 50 mbar
NATURAL GAS TYPE Natural Gas
NATURAL GAS POWER 35 / 42 kW
NATURAL GAS INLET DIAMETER 3/4"
NATURAL GAS NOMINAL PRESSURE 20 mbar
STEAM POWER 35 kW
HOT WATER PRESSURE 2-4 Bar
COLD WATER INLET DIAMETER 3/4"
COLD WATER PRESSURE 2-4 Bar
COLD WATER HARDNESS 8 dH, 14.2 fH, 10 bH
DRAIN INLET DIAMETER 2"
